UE4 Terrain and Landscape

This tutorial is the second in the 10 part series on how to create a first person shooter game using Unreal Engine 4.

Creating The Terrain

Go to 'Contents Browser' and select 'Add New' and choose 'New Level'

Select level and in ‘Modes menu’, select ‘Landscape’ and your view-port should look like the following:

In the ‘Modes’ panel, select the landscape mode and adjust its settings to the following (15 x 15 quads is large enough for the first level), then select ‘Create’

Editing The Landscape (Terrain)

1 When a landscape is created the following options panel should appear under ‘Landscape Mode’

You can edit your landscape you can choose from three edit modes. These three modes are:

Manage Mode
Sculpt Mode
Paint Mode (This will be covered under the Materials and Textures tutorial)

Manage Mode – Create new landscapes, Modify an existing landscape, Select components (building blocks/grids of landscapes) and modify their properties in the Level Editor’s Details Panel

Selection – Selects a section (Block) of the landscape

Add – Adds a section of landscape to the current Landscape and can add a number of blocks based on the value of the brush size

Delete – Completely removes a section of the landscape

Move Level – Moves any selected components to the specified streaming level

Change Component Size – Changes the size of components and the size of the landscape according to the settings

Edit Splines – Ctrl + Left Click on the landscape will place a node for a spline. If a node is selected and there is another node placed, this tool will connect the two nodes and if there are no nodes selected then a new node will be placed

Sculpt Mode – Allows you to mould the look of your landscape height map

1. Sculpting Tools – Sculpts the landscape with various tools.

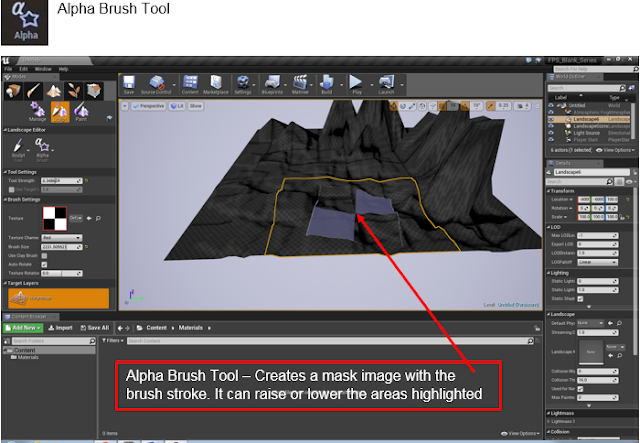

2. Brush Tools – Modifies the appearance and effect of the brush that is used when you are painting or sculpting the Landscape

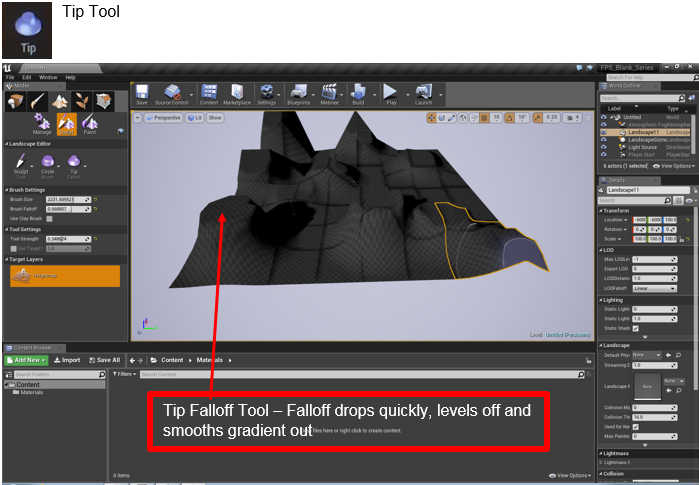

3. Falloff Tools – Modifies how your brushes falloff

Sculpt Tools

Retopologize Tool

Similar to the smooth tool but it pushes and pulls triangles to smooth the transition of the landscape and try and keep the basic form of the terrain which minimizes change to the height of the landscape. This tool makes the project slower to render and should only be used if really needed.

Visibility Tool

Used to create holes in the landscape for things such as caves. For this tool to be visual, the landscape must have a material/texture on it. This tool will be covered in more detail in our ‘Textures and Materials’ tutorial.
